Server Cabinets & CCTV Networking Racks Guide
Structured IT equipment needs secure, organized, and properly cooled enclosures. Server racks and CCTV cabinets protect switchboards, patch panels, NVR recorders, and power backup units from dust accumulation, physical tampering, and overheating.
Selecting Network Cabinets for UAE Server Rooms and Offices

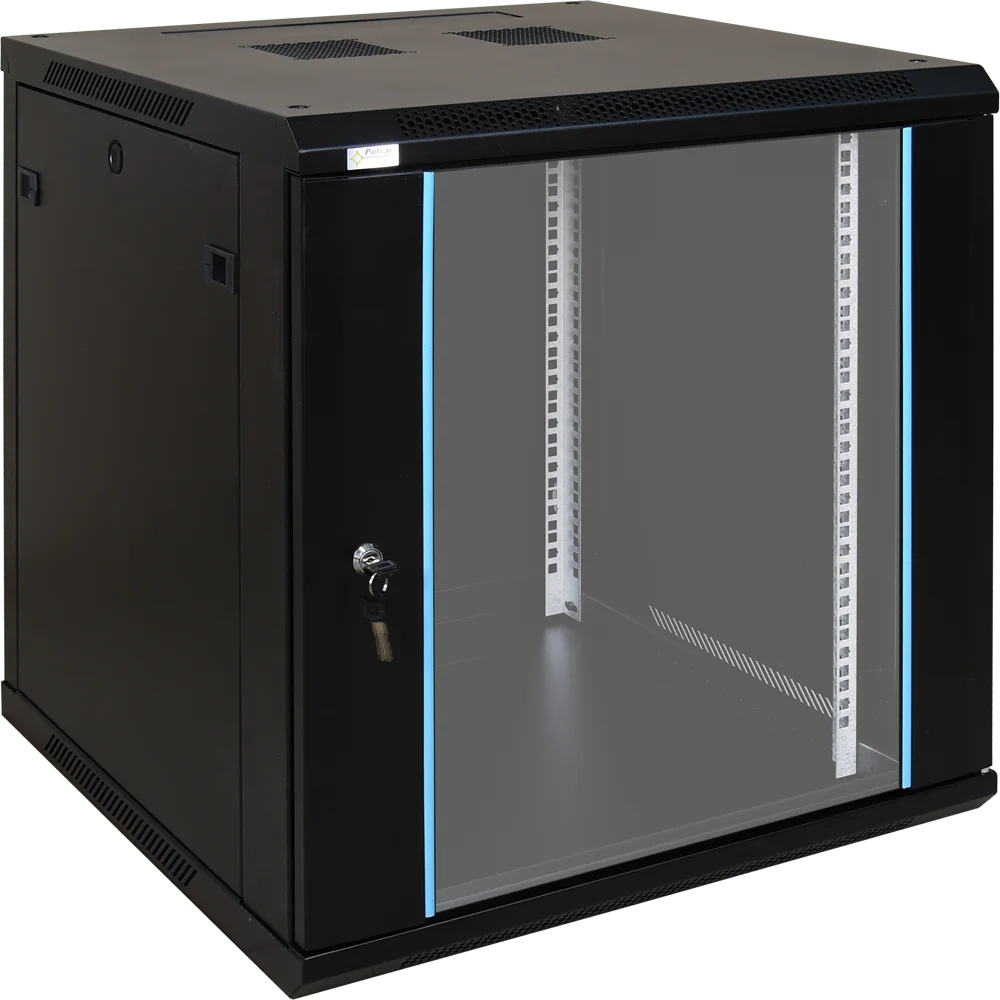

IT directors must balance spatial constraints, thermal loads, and security when selecting equipment racks. Wall-mount cabinets (6U to 18U) are ideal for decentralized floor risers with shallow switch depths. Floor-standing cabinets (22U to 47U) are designed for centralized server rooms and data hubs. Ensure server racks are at least 1000mm deep to accommodate long server chassis and leave adequate rear clearance for cables and PDUs. Active cooling is vital: cabinets must feature top-mounted dual or quad cooling fans to expel heat, lockable tempered glass or perforated steel doors to restrict access, and heavy-duty, adjustable 19-inch mounting rails to support heavy equipment payloads.
Commercial Benefits
Active Thermal Control
Integrated cooling fans prevent equipment overheating and downtime.
Lockable Security Panels
Tempered glass front doors and removable side panels restrict unauthorized access.
Structured Cable Channels
Generous vertical and horizontal slots reduce strain and organize patches.
IP-Rated Enclosures
Outdoor cabinets (IP55/IP66) protect equipment from dust, moisture, and extreme heat.
Typical B2B Applications
- ✓Decentralized commercial floor cabling risers
- ✓Corporate headquarters server rooms
- ✓Industrial warehouse security control centers
- ✓Outdoor telecommunication node enclosures
Target B2B Industries Served
Standard Specifications & Model Comparison
| Cabinet Type | Standard Height | Depth Options | Cooling System |
|---|---|---|---|
| Wall Mount Cabinet | 6U, 9U, 12U, 15U, 18U | 450 mm, 600 mm | Single/Dual fan unit |
| Floor Server Rack | 22U, 32U, 42U, 47U | 800 mm, 1000 mm, 1200 mm | Quad fan unit / thermostat |
| Network Cabinet | 22U, 32U, 42U, 47U | 600 mm, 800 mm | Dual/Quad fan unit |
| Outdoor Cabinet | 9U, 12U, 18U, 24U | 600 mm, 800 mm | IP55 ventilation / heat exch. |
Frequently Asked Questions (Category Buying Guide)
Need a Customized Fabrication or System Design?
Speak directly with our technical team in Dubai. We design and manufacture brackets, camera poles, AV consoles, and fiber distribution systems tailored to your project requirements.
